SIMGASM | Pro Aluminum Sim Racing Cockpit - White

Pro White: the flagship aluminium-profile platform for maximum structural headroom

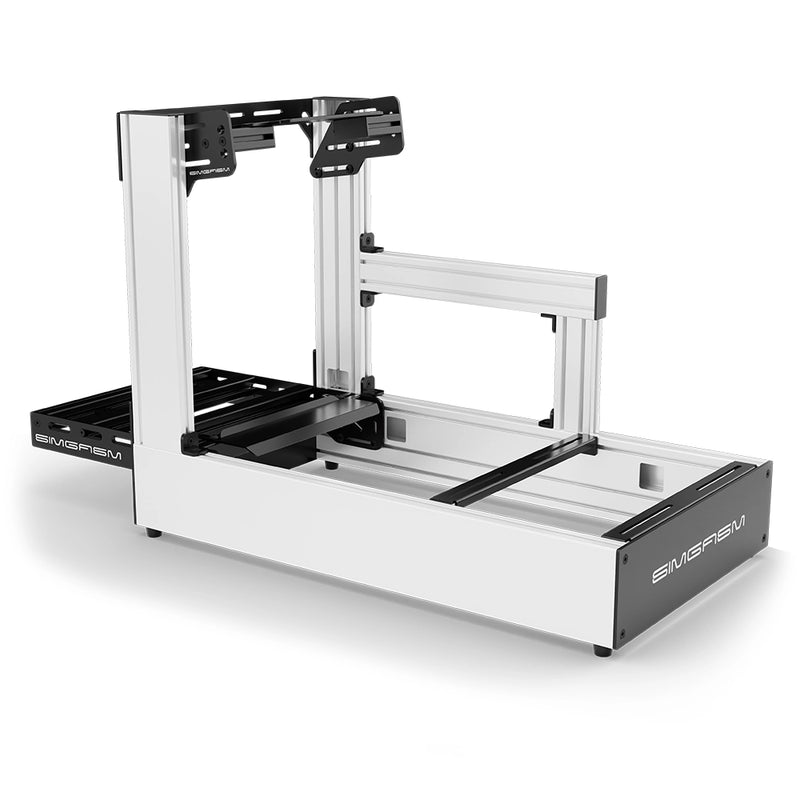

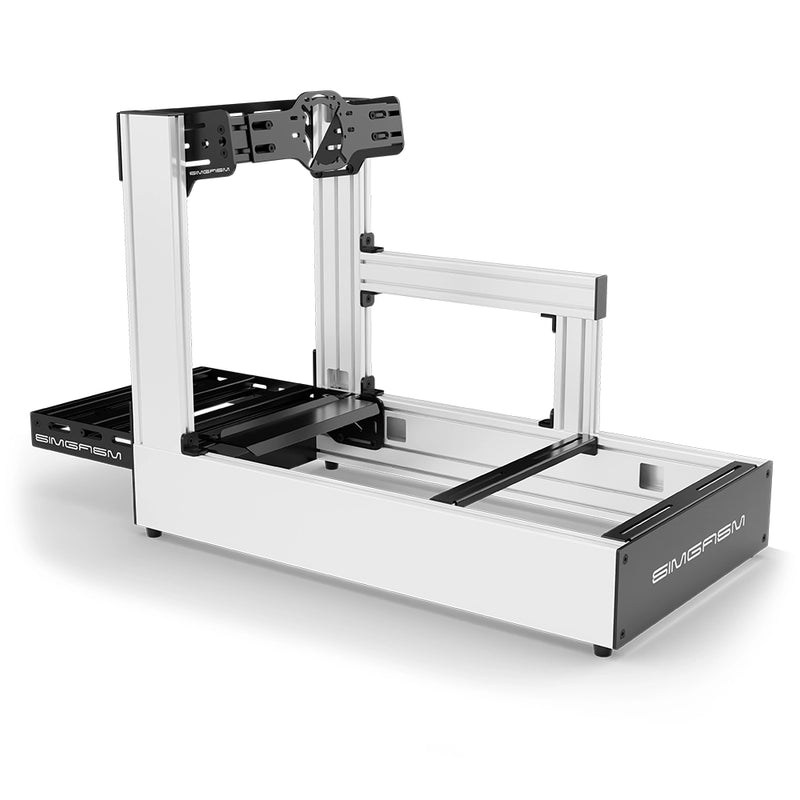

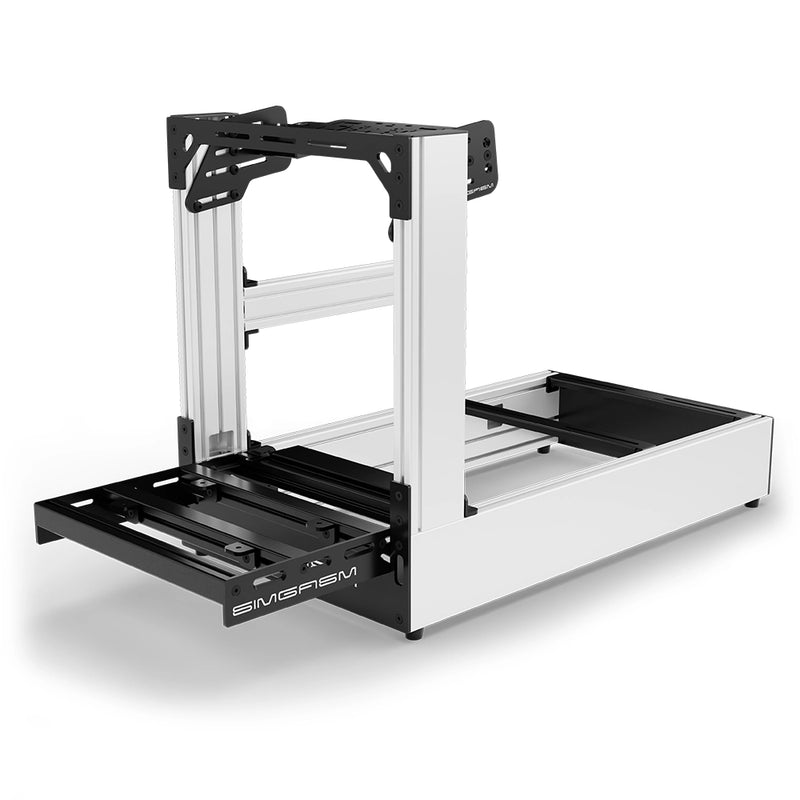

The SIMGASM Pro Aluminum Sim Racing Cockpit in White uses a 40 × 160 mm main profile and has overall dimensions (W × L × H) of 600 × 1350 × 890 mm. Its deeper main profile and heavy-duty steel reinforcement at critical mounting points are intended for demanding direct-drive, braking and motion builds where chassis reserve takes priority over size and weight.

Choose the Pro chassis for its position in the range, then select the wheel mount that matches your wheelbase in the compatibility module.

What is included—and what is not

Included: the aluminium profiles, structural chassis brackets, the wheel-mount option selected at checkout, assembly hardware and tools, white assembly gloves, the assembly guide, the Apex side-profile shifter/handbrake arm, heel rest and rubber feet.

Not included: the seat, seat slider, wheelbase, steering wheel, pedals, shifter or handbrake device, monitor stand, display, motion hardware or actuators unless a bundle or option explicitly states otherwise. Add the dual-locking seat slider when adjustable seat positioning is required.

Why choose Pro instead of Sport?

Sport uses a 40 × 120 mm main profile and is the smaller, lighter value alternative. It still carries the same 300 kg rated braking load at the pedal deck, integrated cable routing and motion readiness; Pro differentiates itself through the 40 × 160 mm structure and added steel reinforcement. Compare it with the same-finish Sport cockpit.

White finish for a bright, design-led simulator

White gives the cockpit a lighter visual presence and works well in clean interiors where an all-black frame would feel heavy. It also makes the structure easy to read, turning the chassis into a deliberate part of the room.

Black wheel, seat and monitor hardware creates sharp contrast and gives the finished setup a clear visual hierarchy. A mostly monochrome component choice keeps the result modern and controlled.

Wheelbase compatibility depends on the selected mount

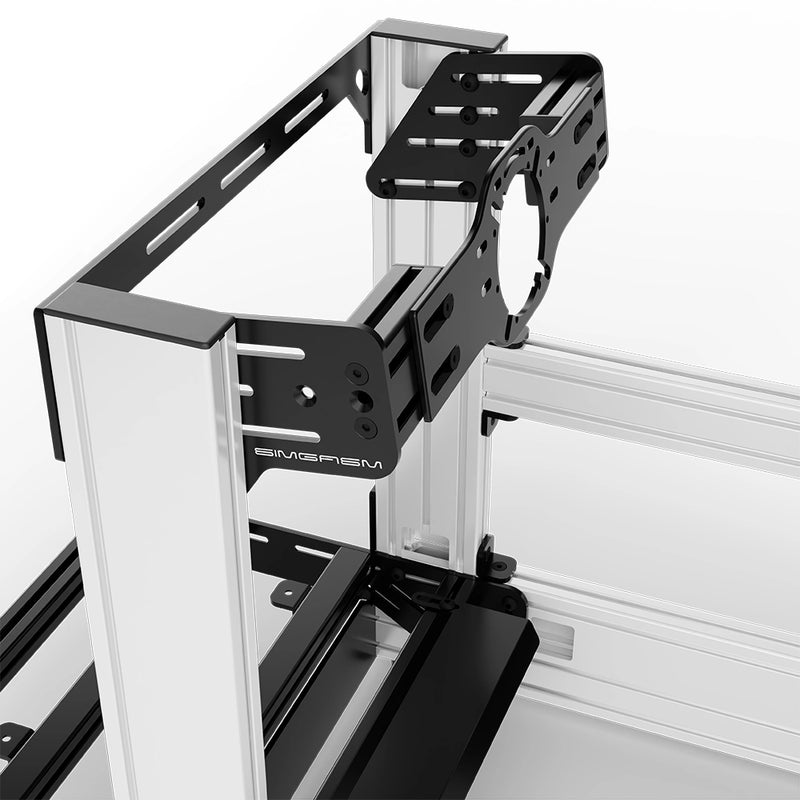

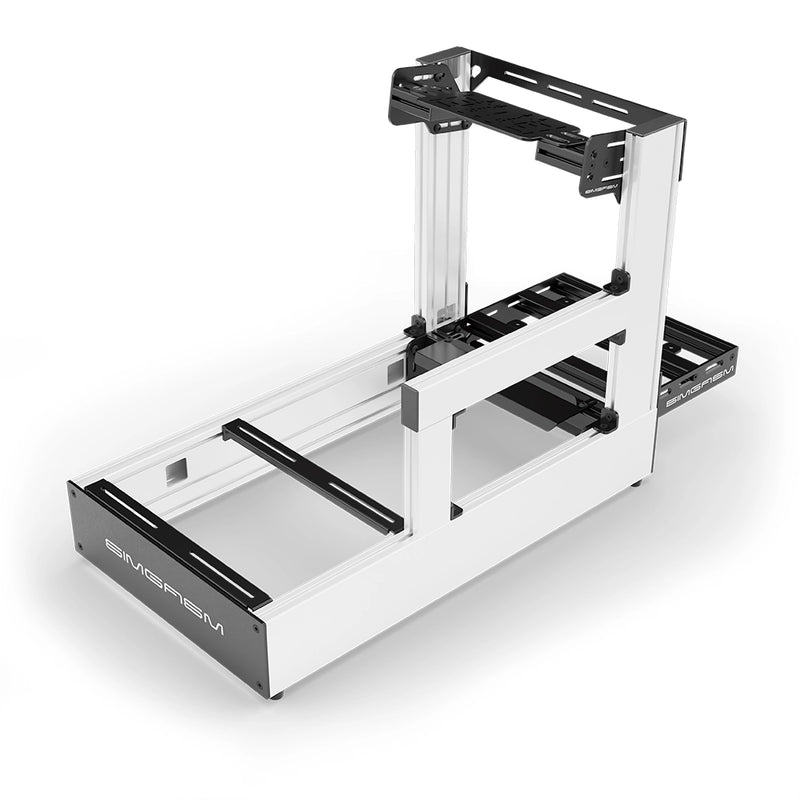

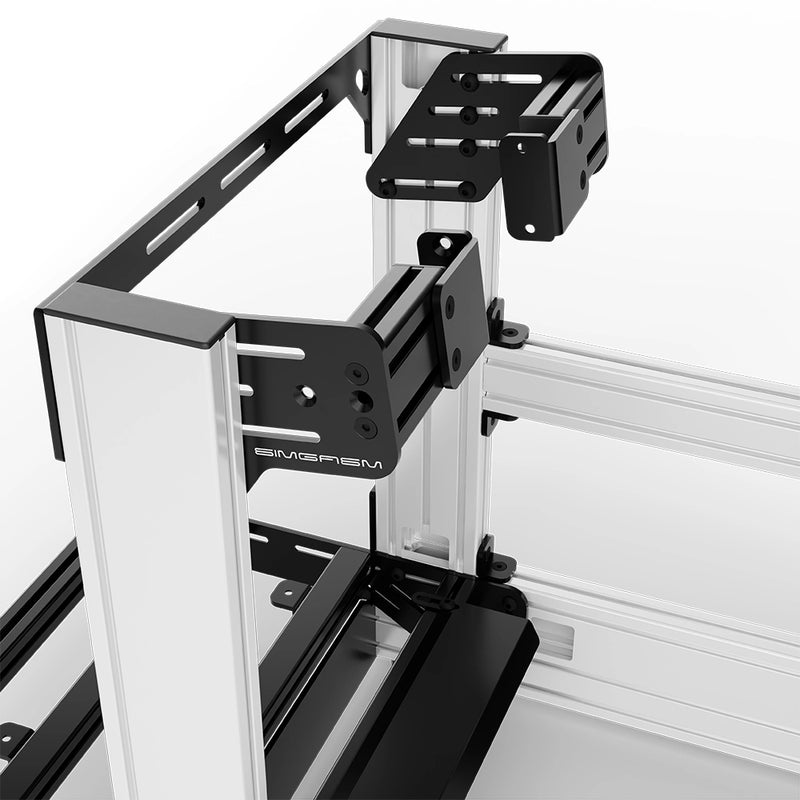

Compatibility is model-specific. Bottom Mount covers supported underside patterns from Logitech, Fanatec, MOZA, Thrustmaster, SIMAGIC, PXN, Simucube, Asetek and VRS. The regular Front Mount covers supported Fanatec, Simucube and VRS front patterns and does not fit any SIMAGIC wheelbase. Side Mount covers supported Fanatec, MOZA and SIMAGIC models, while Asetek Front Mount is dedicated to supported Asetek models. Always use the live selector and detailed model-level table on this page before ordering.

Key Pro comparison facts

• Main profile: 40 × 160 mm
• Overall dimensions (W × L × H): 600 × 1350 × 890 mm
• Rated braking load at the pedal deck: 300 kg
• Integrated cable passthroughs and motion-ready construction
• Heavy-duty steel reinforcement at critical mounting points
• Standard SIMGASM warranty: 2 years

Build a complete White simulator

Pair the cockpit with the Apex Integrated Single Monitor Stand when you want a directly mounted screen solution. Browse the complete SIMGASM cockpit range to compare the four profile tiers and all available finishes.
