A sim racing cockpit should still feel dependable years after the first assembly. It should hold the wheelbase securely, support repeatable braking and preserve the driving position as hardware changes. The important question is therefore not simply whether a cockpit feels solid on day one. It is whether the complete structure manages repeated loads without unwanted movement developing at its critical joints.
SIMGASM engineers its aluminium-profile chassis around that long-term requirement. We believe our cockpits rank among the strongest options in their respective price and size classes. That belief comes from the structure, material choices, load paths and replaceable connections—not from a claim that one unexplained laboratory number can represent every real installation.
This guide explains what stiffness means, what can change after three to five years and how to keep a cockpit performing as intended.
Stiffness, strength and lifespan are different questions
These terms are often mixed together, but they describe different properties.
Stiffness is resistance to movement under load. In a cockpit, drivers usually notice it as wheel-deck flex, pedal-tray movement, steering-column twist or vibration around a monitor.
Strength is the ability to carry load without permanent deformation or structural failure. A part can be strong enough not to break while still moving more than a driver wants.
Durability describes how the assembly continues to perform after many braking events, steering corrections, kerb strikes and hardware adjustments. This depends on the frame as well as fasteners, brackets, sliding interfaces and correct assembly.
Lifespan is the practical period for which the cockpit remains safe, usable and supportable. It is influenced by the original design, the installed equipment, maintenance, environment and whether the rig has been altered outside its intended configuration.
A meaningful comparison should consider all four. A headline load figure by itself does not show where that load was applied, how long it was held or whether movement occurred elsewhere in the system.
The load path matters more than a single thick component

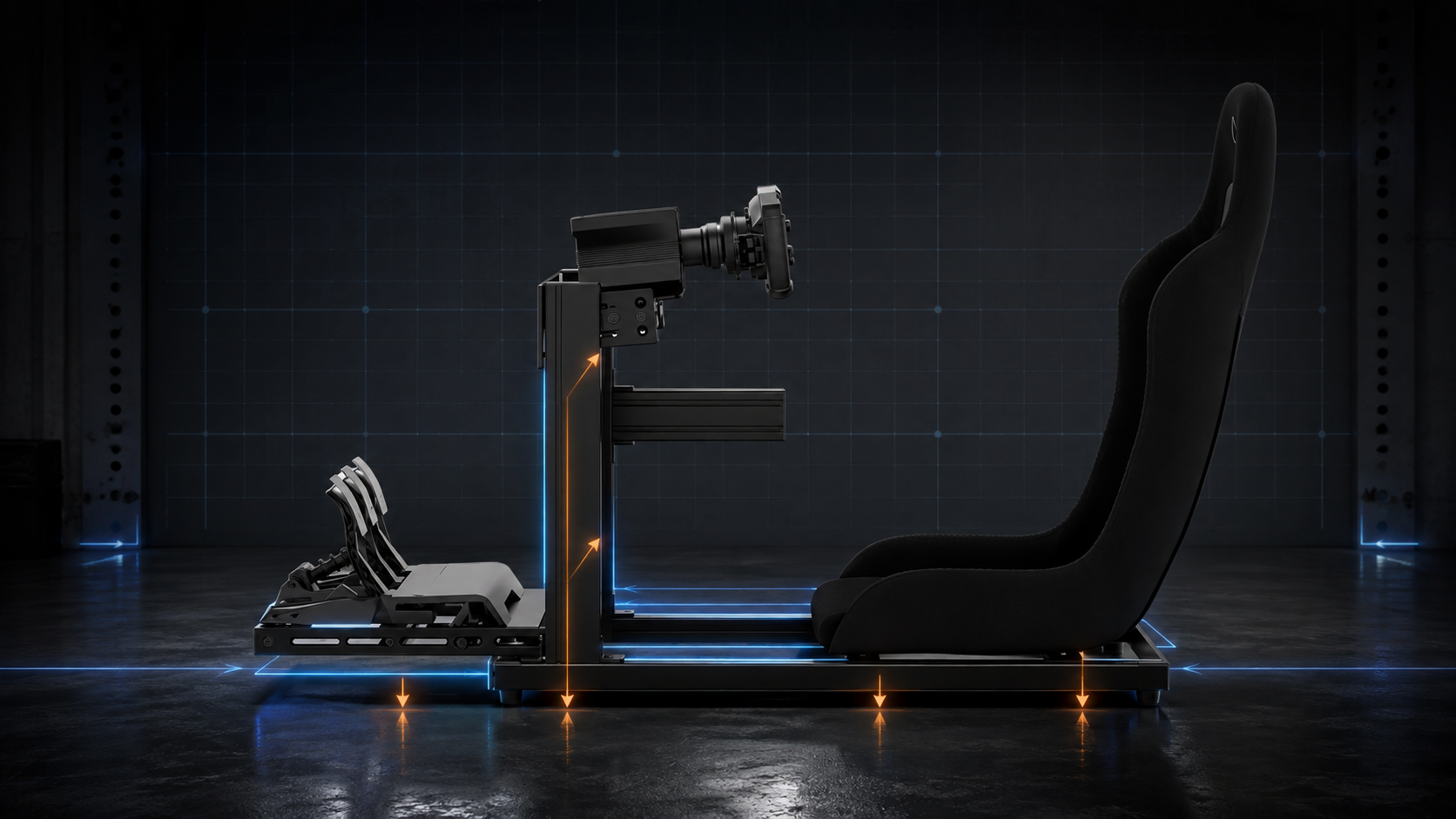

Every input creates a load path through the cockpit. Direct-drive steering torque travels from the wheel rim through the wheelbase, mount, uprights and base. Brake force travels through the pedal plate into the chassis and returns through the seat and driver. If one connection along that path moves, the driver feels it even when the surrounding profiles are substantial.
That is why rigidity is a system property. Profile section, wall geometry, bracket design, plate thickness, fastener placement and unsupported span all work together. More material can help, but only when it is placed where the structure needs it.
Good adjustment matters too. A cockpit must be configurable, yet each adjustment introduces an interface that needs secure clamping. SIMGASM uses bolted, serviceable construction so the driving position can change without making the complete frame disposable. Correct assembly then becomes part of the performance equation.
The result should be controlled movement rather than a vague promise of perfect rigidity. Every physical structure deflects under enough force. The useful goal is to keep movement low, predictable and appropriate for the hardware and driving style.
Four chassis tiers for different loads and budgets
The SIMGASM cockpit range is not one design resized four times. Hobby, Club, Sport and Pro offer increasing structural capacity, adjustment and upgrade scope.
The Hobby cockpit is designed to deliver high rigidity for its compact footprint and accessible price. Current selection guidance supports direct-drive wheelbases up to 16 Nm, depending on the complete configuration, pedal forces and intended use. That makes it a serious structural platform, not a lightweight stand presented as a full cockpit.
The Club range increases the base-profile thickness to double the Hobby configuration. It is suited to drivers who want more structural reserve, a broader hardware path or a more demanding pedal setup while retaining a clean aluminium-profile format.
The Sport range adds a thicker base and pedal-tray structure, improved cable-routing options and a stronger, more adjustable wheel-mounting system. Those changes target the areas where higher forces and frequent setup changes matter most.
The Pro range is the maximum-capability platform for demanding, highly adjustable and multi-purpose installations. It is the logical starting point when the build may include heavy professional hardware, extensive peripherals, motion or a layout serving more than one driving discipline.
The strongest choice is not automatically the largest cockpit. It is the correctly specified cockpit for the wheelbase torque, brake force, seat, accessories and future plans. Overbuying can waste space and budget; under-specifying can move the compromise into the exact places where consistency matters.
What should happen after three to five years?
Under normal indoor use, a properly specified aluminium-profile chassis should not suddenly become soft simply because three or five calendar years have passed. The structural profiles are not consumables. If the rig feels different, the cause is more likely to be a joint that has settled, an accessory that was repositioned, a fastener that needs attention or a wear component outside the main frame.
Bolted assemblies can settle during initial use. Repeated high brake force and steering vibration can also expose a connection that was not fully tightened during installation. That does not mean the chassis material has reached the end of its life. It means the assembly should be inspected as a system.
Seats, slider mechanisms and moving joints may show wear before the chassis itself. A small amount of seat-rail play, for example, can feel like frame flex because the driver's body is the reference point. Pedal pivots, wheel quick releases and monitor arms can produce the same effect.
Environment matters. A dry indoor room is different from a damp garage or a rig that is moved frequently. Surface marks are usually cosmetic, but corrosion on untreated hardware, damaged cables or loose floor feet deserve attention.
A simple long-term inspection routine
Check the cockpit after its first period of use, after a major hardware change and whenever new movement or noise appears. For a rig that sees regular use, a periodic inspection is sensible even when nothing feels wrong.
- Check the wheel mount, upright-to-base joints, pedal assembly and seat mounting first.
- Look for visible gaps, shifted alignment, damaged brackets or fasteners that no longer sit correctly.
- Hold the wheelbase housing, pedal plate and seat separately to identify where movement begins.
- Re-tighten only according to the applicable assembly guidance; do not compensate for an incorrect fit by applying uncontrolled force.
- Inspect floor feet, cable routes and moving accessories before assuming the main chassis is responsible.
If a part has been bent, drilled, modified or involved in an impact, ask SIMGASM for advice before continuing to use it. Photos of the complete installation and close-ups of the affected joint make a technical review much faster.
Upgrades should not shorten the life of the chassis
A long-lived cockpit is one that can accept sensible change. Moving to a different wheelbase or pedal set should normally require the correct mounting interface, not replacement of the whole frame. The same principle applies when adding a shifter, handbrake, monitor support or motion system.
Before an upgrade, compare the new hardware with the published compatibility and load guidance. Torque is only one input. A stiff elastomer or hydraulic brake can create large forces even when the wheelbase is modest. A wide triple-monitor assembly can also introduce leverage that a small single-screen mount never experienced.
If your intended combination is not listed, use the SIMGASM contact page and share the exact model names. The team can help distinguish between a compatible installation, a suitable adapter and a build that needs a different chassis tier.
Warranty protection and realistic expectations
SIMGASM's published commercial warranty currently covers consumer products for two years and business-to-business products for 12 months, subject to the full terms. Covered manufacturing issues can include structural or material failure and defects in supplied profiles, brackets, mounts or other components. Personalized and made-to-order products remain covered for manufacturing defects.
Normal wear, misuse, accidents, improper installation and unauthorised modifications are treated differently, so the evidence around a case matters. Keep the order information and contact support before altering a suspected defective part. The SIMGASM warranty page contains the current terms and does not reduce any statutory rights that apply to the customer.
No responsible manufacturer can promise that every cockpit will last forever in every configuration. SIMGASM can promise a more useful approach: design the chassis around real load paths, state the intended tier, keep the construction serviceable and help customers identify the right solution when something changes.
Frequently asked questions
How long should a sim racing cockpit stay rigid?
A properly specified and assembled aluminium-profile cockpit should remain structurally dependable for many years under normal intended use. There is no universal expiry date; hardware loads, assembly, environment, modifications and maintenance all affect the result.
Does an aluminium-profile cockpit become less stiff after three to five years?
The profiles should not become soft merely because of age. If new movement appears, inspect fastened joints, seat sliders, mounts, floor feet and other interfaces before concluding that the main frame has changed.
Is the SIMGASM Hobby cockpit suitable for direct drive?
The Hobby is designed for direct-drive systems up to 16 Nm under current selection guidance, depending on the complete setup, pedal force and intended use. Check the exact hardware and ask SIMGASM when the combination is unusual.
How often should I check my cockpit fasteners?
Inspect them after the initial settling period, after moving the rig or changing major hardware, and whenever movement or noise appears. Regular users should also include the critical wheel, pedal and seat joints in a periodic check.
What does the SIMGASM warranty cover?
The current commercial warranty covers consumer products for two years and B2B products for 12 months, subject to the published terms. Manufacturing defects in supplied structural parts and components may be covered, while wear, misuse, accidents and unauthorised modifications are assessed separately.
About the author
SIMGASM B.V. — Written with technical input from Johan Akkerman, founder and CEO of SIMGASM. Johan has been active in sim racing since 2008 and combines practical driving, motorsport and product-development experience. SIMGASM develops its cockpit range around controlled load paths, modular construction and long-term serviceability.
