You want a frame that stays put. Not one that shuffles across the floor every time you stamp on the brake. So two numbers deserve your attention before you order: the weight of the rig itself, and the load it carries at the pedal deck.
Both numbers say something different. Weight tells you how the rig behaves in your room. Rated braking load tells you how hard you press before the structure starts to complain. Together they predict how the setup feels after six months.
What does an aluminium sim racing rig weigh?
An entry level aluminium frame lands around 20 kg. The SIMGASM Hobby weighs 20.5 kg as a bare chassis with its brackets and wheel mount. That already sits far above a folding wheel stand, and it explains why the frame stops moving under load.

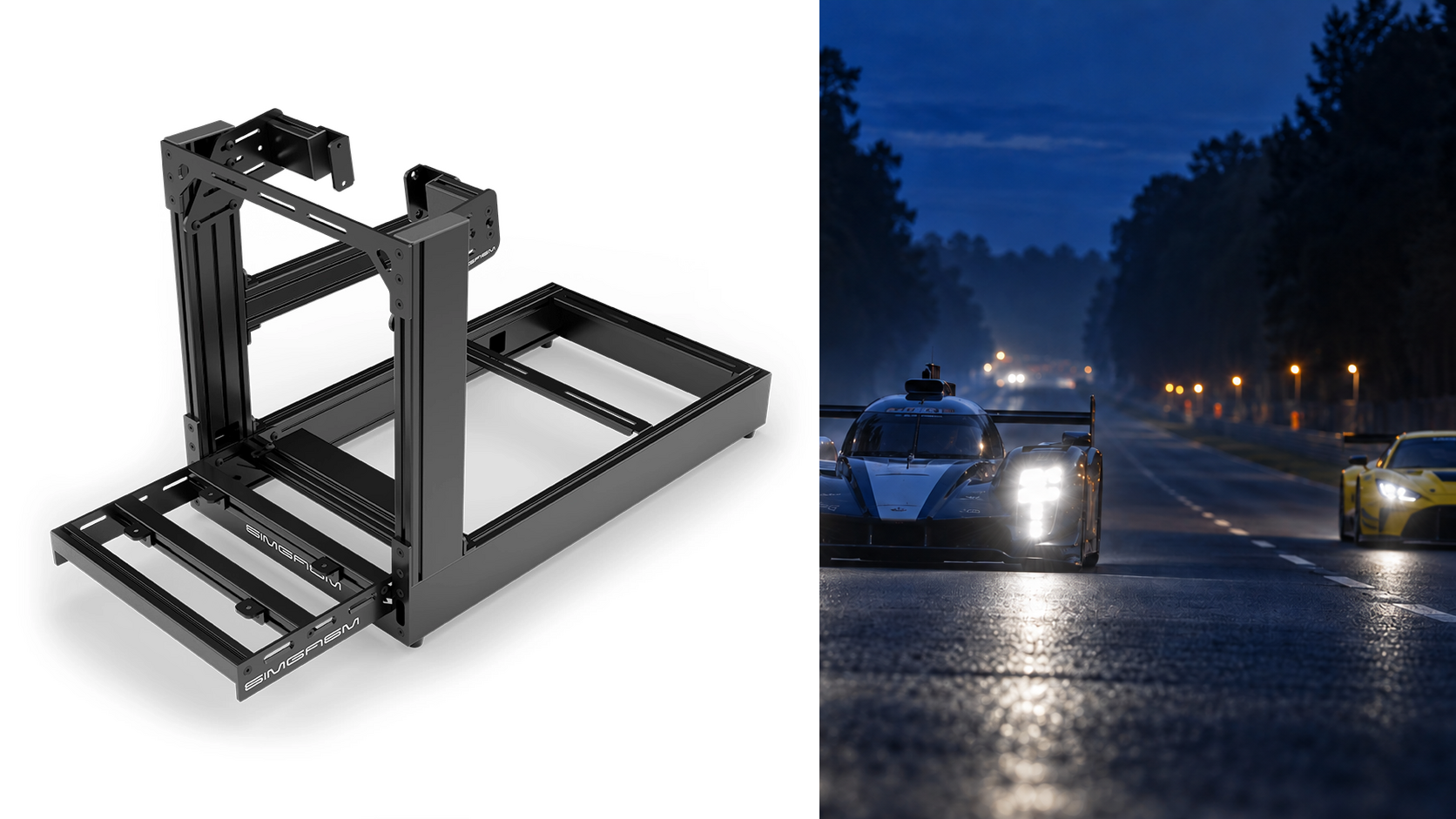

Step up and the mass climbs quickly. The Sport chassis weighs 38.94 kg, roughly double the Hobby, because the main profile grows from 40 x 40 mm to 40 x 120 mm. The Pro adds another step with a 40 x 160 mm profile and steel reinforcement at the critical mounting points.

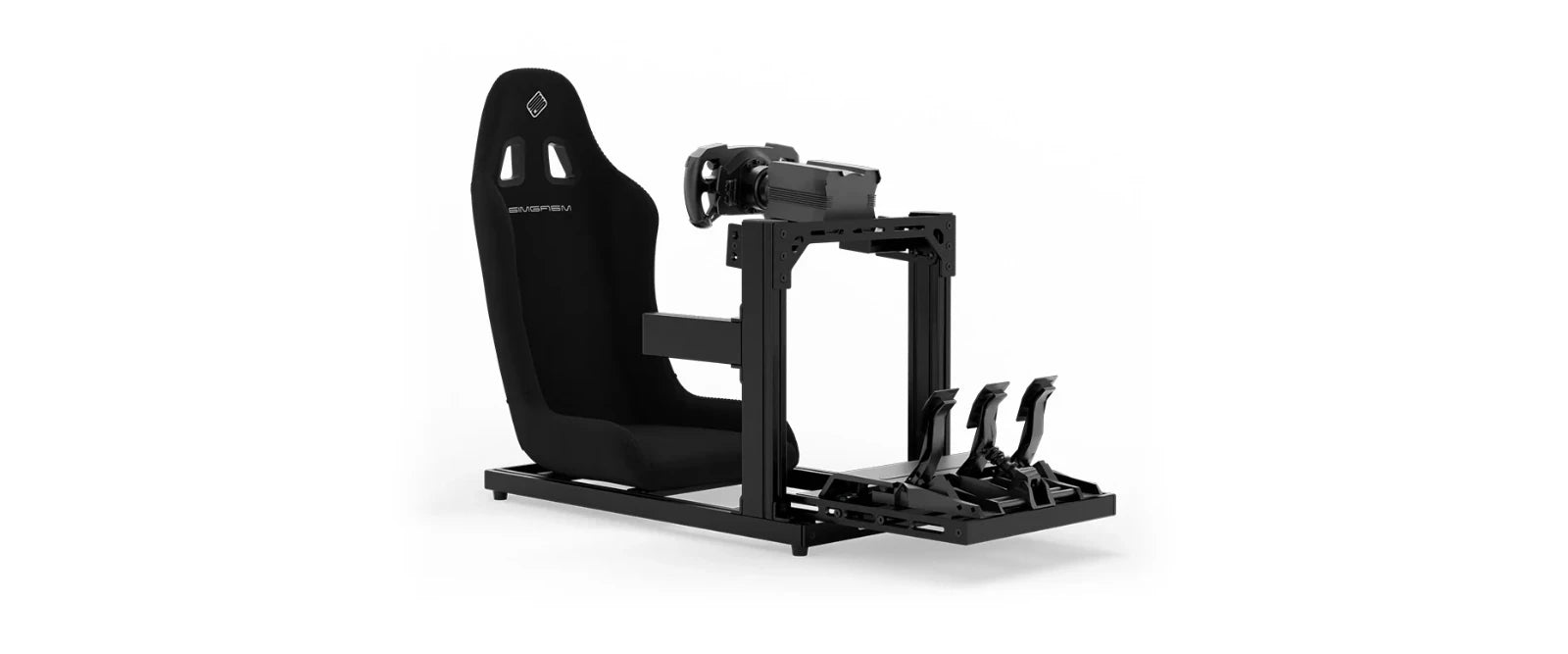

Those figures cover the frame alone. A finished simulator weighs much more. One owner reported a fully built Sport chassis at 77 kg once the seat, wheelbase, pedals and extras went on. Plan your floor and your doorways around the finished number.
SIMGASM | Sport Aluminum Sim Racing Cockpit - Black
How much braking force does a rig actually take?
SIMGASM publishes a rated braking load per tier, measured at the pedal deck. Hobby carries 150 kg. Club carries 200 kg. Sport and Pro both carry 300 kg. That figure describes sustained pressure, not a one off stunt.
Why does it matter so much? Load cell pedals read pressure instead of travel, so your leg pushes against a spring pack or an elastomer stack rather than against a moving arm. A committed brake application sits between 60 and 90 kg for most racers on a set such as the MOZA CRP2 load cell pedals. Hydraulic sets push higher.
If the deck moves even slightly under that pressure, your brake point drifts. You start braking earlier because the feel changes lap by lap. A deck that stays rigid gives your muscles a fixed reference, and consistency follows.
Does driver weight change the picture?
Less than most people expect. Your body weight sits on the seat and the seat brackets, and the frame carries that mass straight into the floor. Taller and heavier drivers mainly need attention on seat mounting and on the reach to the pedals.
Real feedback backs that up. One owner at 204 cm and 136 kg reported an excellent fit on the entry level Hobby chassis. Another at 2 m praised the pedal tray on the same frame. Fit and adjustability matter more here than raw load rating.
SIMGASM | Pro Aluminum Sim Racing Cockpit - Black
Why does more mass make a rig feel faster?
A heavy frame resists movement in two ways. It sits still through friction with the floor, and it damps vibration through sheer inertia. Both effects clean up the force feedback signal that reaches your hands.
Think about a hard downshift into a slow corner. The wheelbase twists, the pedals push forward and the seat pulls back. On a light frame those forces cancel each other badly and the whole rig rocks. On a heavy frame nothing shifts, so the only movement you feel comes from the simulation.
This links directly to profile depth. Our article on which aluminium profile size a sim racing rig needs explains how a deeper beam multiplies stiffness while it adds mass.
How much space and floor strength do you need?
A Hobby chassis measures 500 x 1270 x 580 mm. A Sport chassis measures 580 x 1320 x 720 mm. Add a seat, a monitor stand and room to get in and out, and the practical footprint grows by roughly half a metre in every direction.
Normal floors handle the load easily. A finished rig at 80 kg spreads that mass across four feet, which stays well below the pressure of a loaded bookcase. Soft flooring reacts differently though, and that deserves its own attention.
Planning a room around the frame? Our guide on how much space a sim racing cockpit needs gives practical clearances for a single screen and a triple screen build.
What happens when you exceed the rating?
Nothing dramatic on the first hard stop. The frame flexes, brackets settle and bolts loosen slowly. Then you notice creaking, a seat that shifts under braking and a wheel deck that no longer sits square.
Most of that starts at the seat. Our article on why your seat creaks and moves under braking walks through the brackets, sliders and torque checks that fix it.
SIMGASM | Hobby Aluminum Sim Racing Cockpit - Black
Which weight class suits your setup?
Match the rating to your pedals first, then to your wheelbase. Potentiometer or light load cell pedals pair happily with a 150 kg rated deck. Strong load cell sets belong on a 200 kg deck or higher. Hydraulic pedals belong on a 300 kg deck.
Compare the tiers directly in the racing sim rig collection and check the published weight and braking load on each product page before you decide.
Q&A
We answer a few questions that come up often:
How heavy is a complete sim racing rig?
The frame alone runs from around 20 kg for an entry level chassis to roughly 39 kg for a mid tier one. A finished simulator with seat, wheelbase, pedals and screens often lands between 60 and 100 kg.
What braking load should I look for?
Aim for a rating comfortably above your peak pedal pressure. A 150 kg deck suits casual load cell use, 200 kg suits regular racing, and 300 kg covers strong load cell and hydraulic pedal sets.
Is there a maximum driver weight?
The seat and the seat brackets set that limit rather than the frame. Check the load rating of your seat and use a dual locking slider rated for the same mass.
Does a heavier rig damage laminate or vinyl flooring?
Point loading matters more than total weight. Rubber feet spread the load, and a mat under the frame protects softer flooring from marks.
Do I need to bolt the rig to the floor?
Almost never. A rig of 20 kg or more with rubber feet stays planted through normal braking. Bolting down only makes sense for very light frames or for motion systems.
Will the rig fit through a standard door?
The chassis arrives flat packed in one or two boxes, so it enters the room as parts. Once built, check the width against your door before you move rooms.
Want to learn more? The experts at SIMGASM will be happy to help you.
