Qubic System - QS-210-PL 3-DOF 4 Axis Motion system

Four actuators. Three dimensions of motion.

Feel braking, acceleration, load transfer and road texture through the complete simulator. The Qubic System QS-210 combines fast linear actuators with low-latency control to bring precise motion feedback to aluminium-profile sim racing cockpits.

Its modular architecture lets you start with a two-actuator setup, add the QS-Pivot for a 2.5DOF experience, or build a complete four-actuator 3DOF system with pitch, roll and heave.

Choose the right configuration

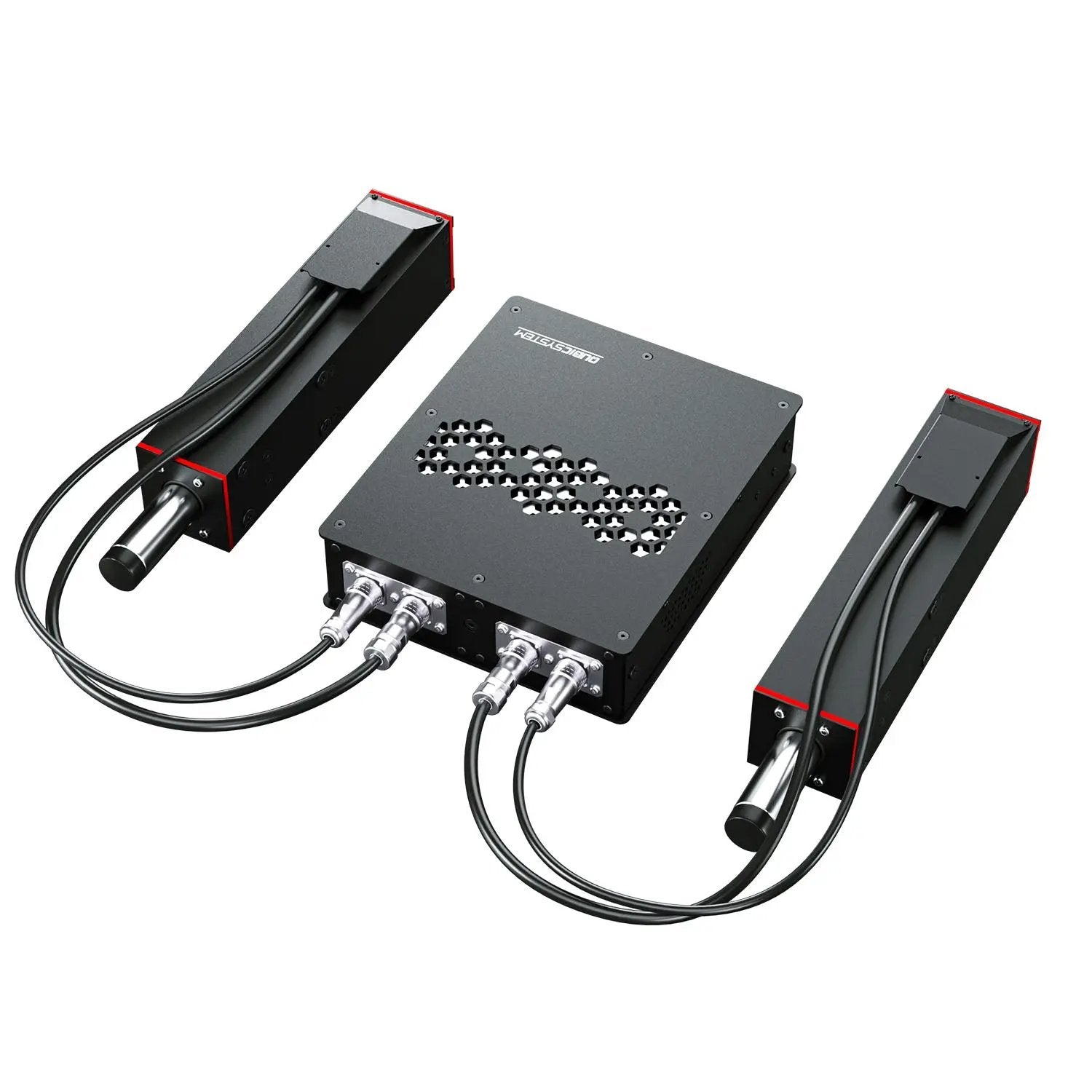

• Intro Set – 2DOF: Two QS-210 actuators, one Power Cabinet and one QS-MC6 controller set. A complete entry point that can be expanded later.

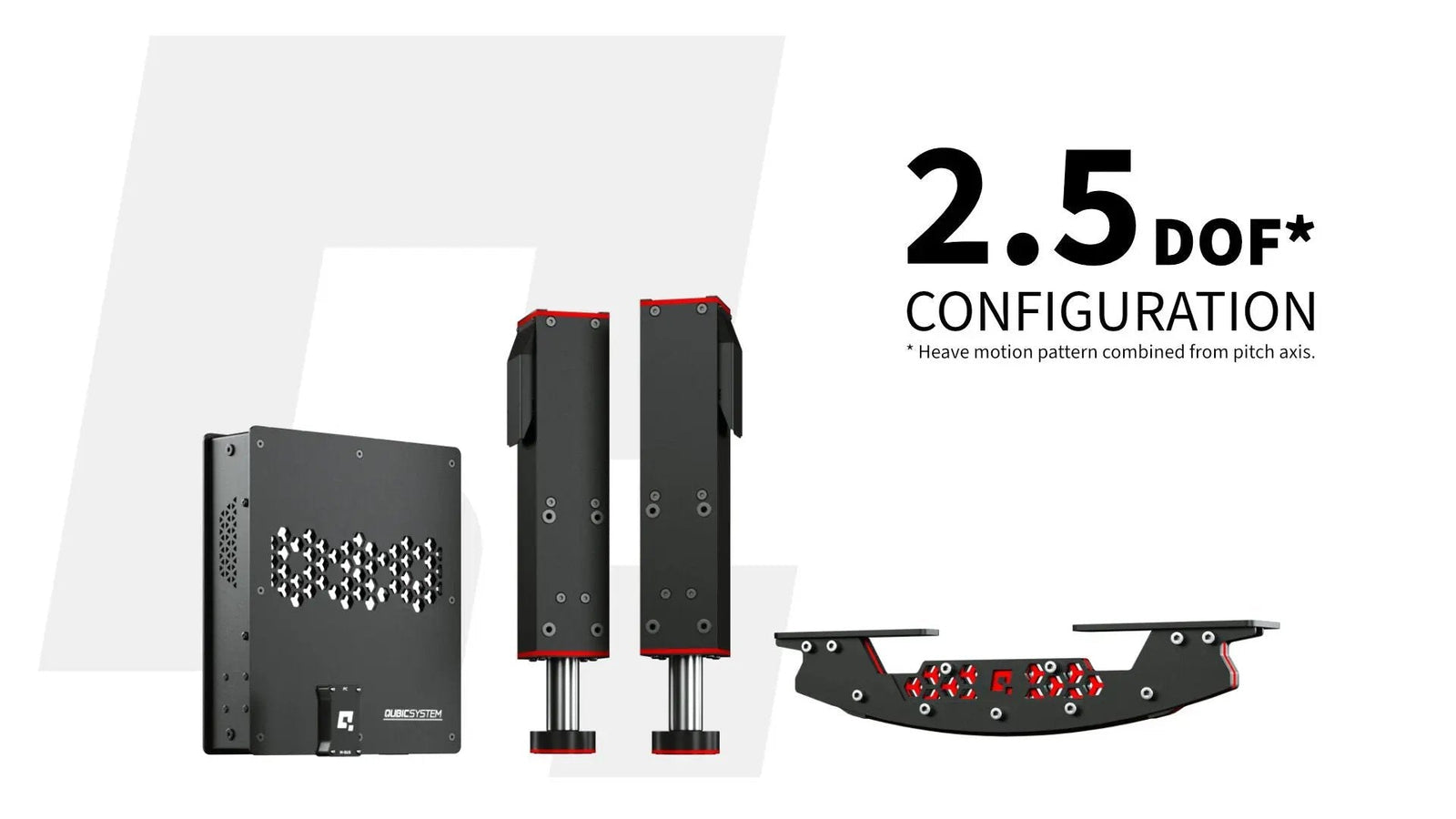

• Pivot Set – 2.5DOF: The Intro hardware combined with QS-Pivot. It adds a simulated heave sensation derived from the pitch axis and operates in Heavy-Duty mode.

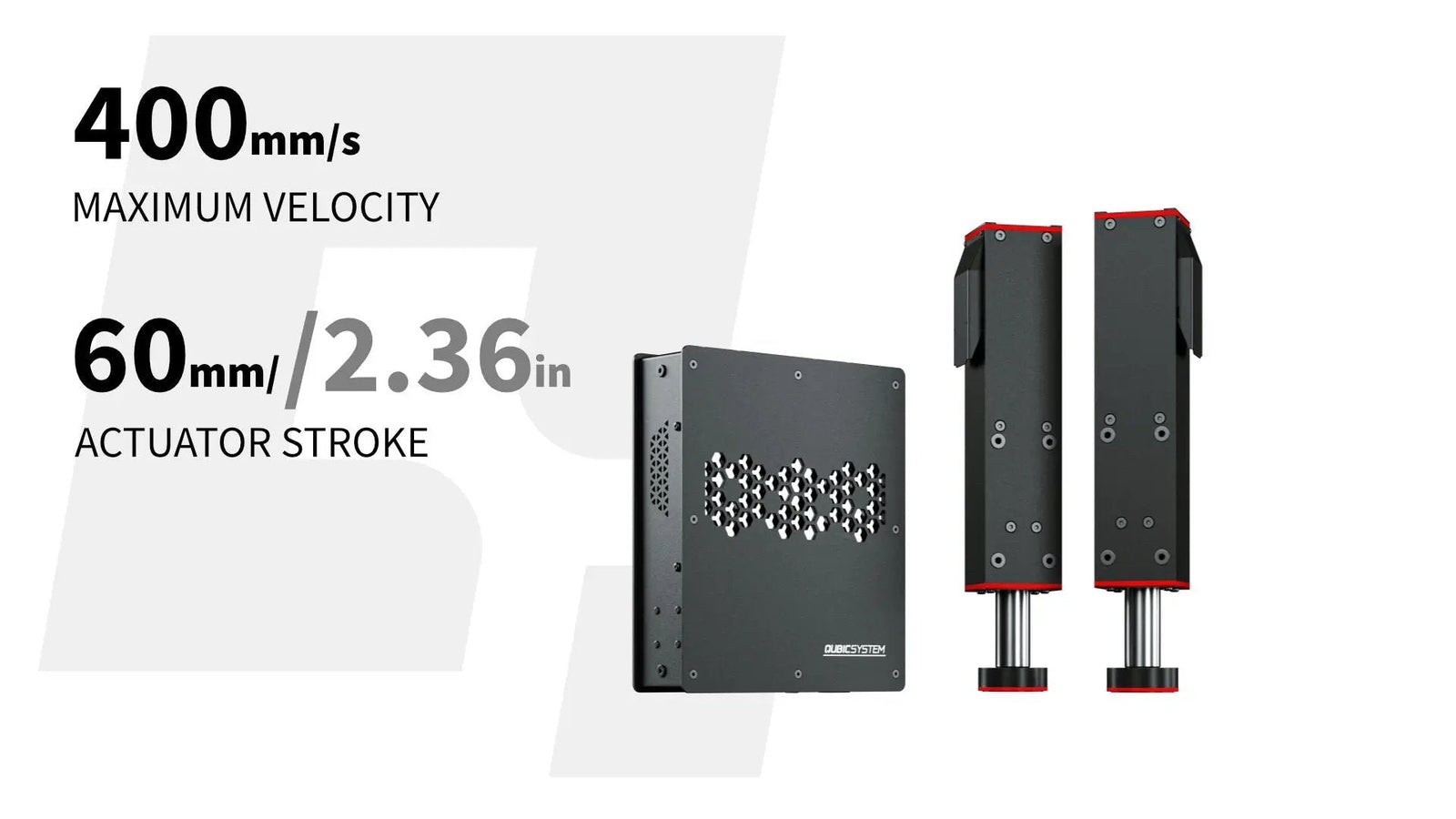

• Upgrade Set – 2DOF to 3DOF: An additional pair of QS-210 actuators and Power Cabinet for an existing QS-210 Intro Set. This is an expansion set, not a standalone motion system.

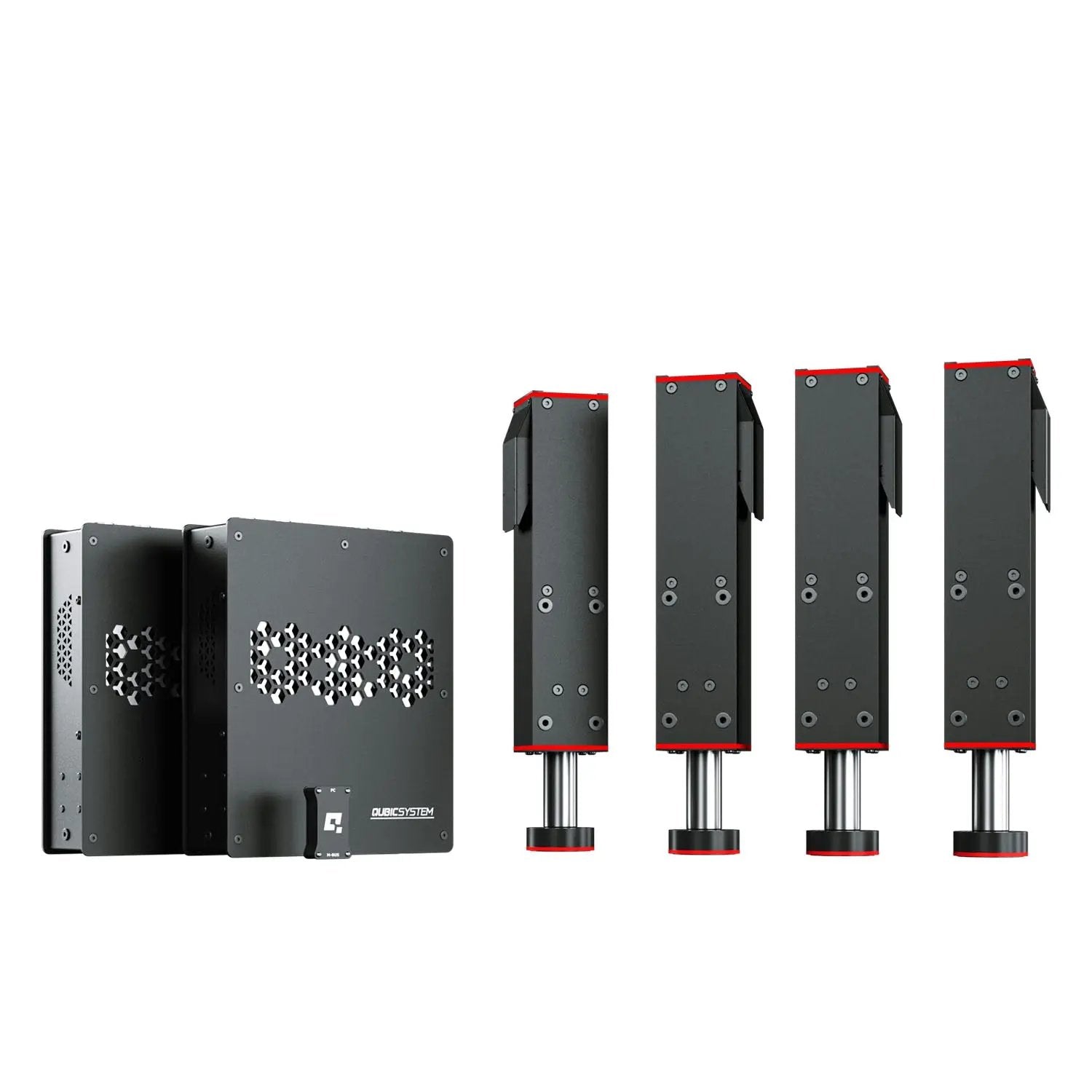

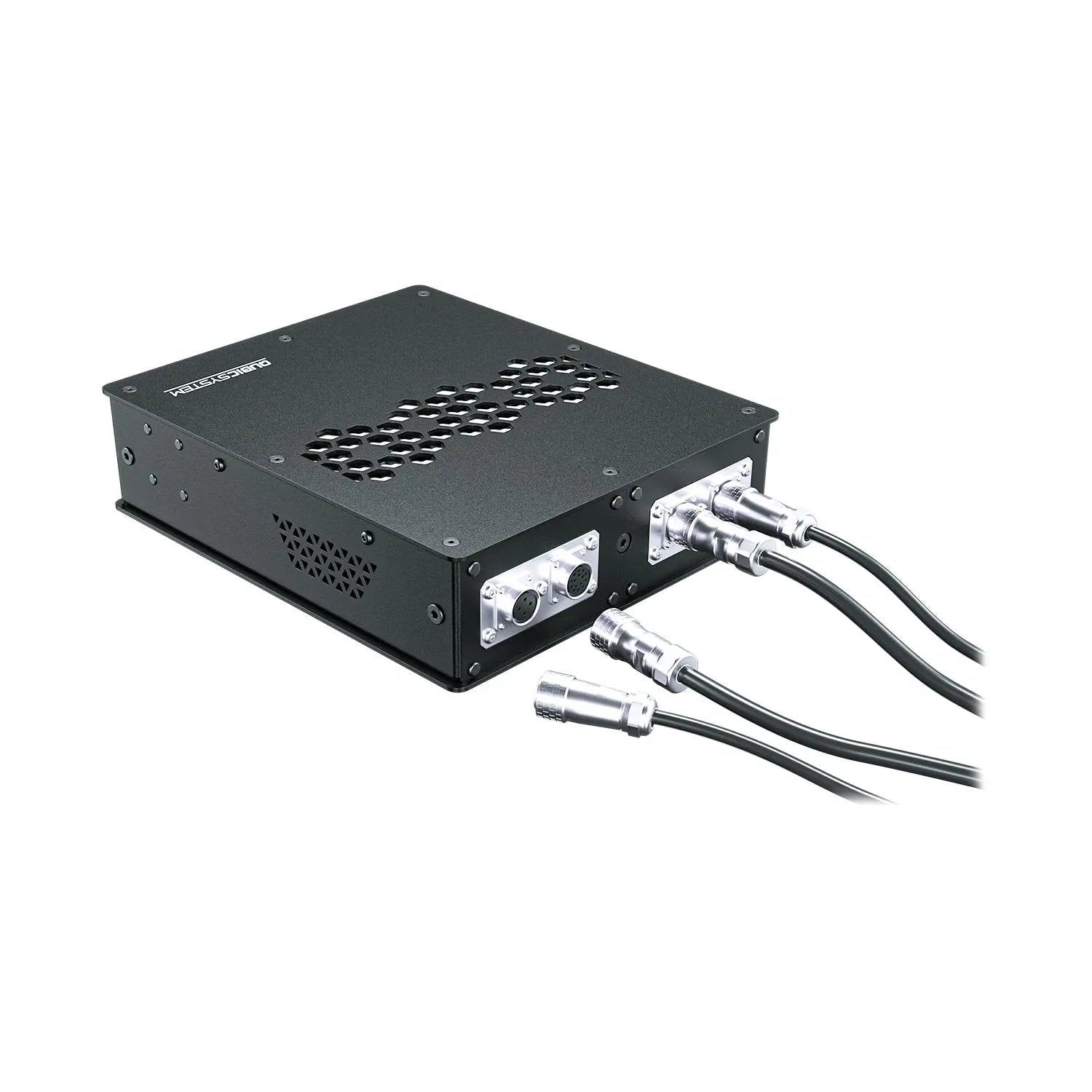

• QS-210 3DOF: The complete system with four QS-210 actuators, two Power Cabinets and one QS-MC6 controller set for pitch, roll and heave feedback.

Compact performance with room to grow

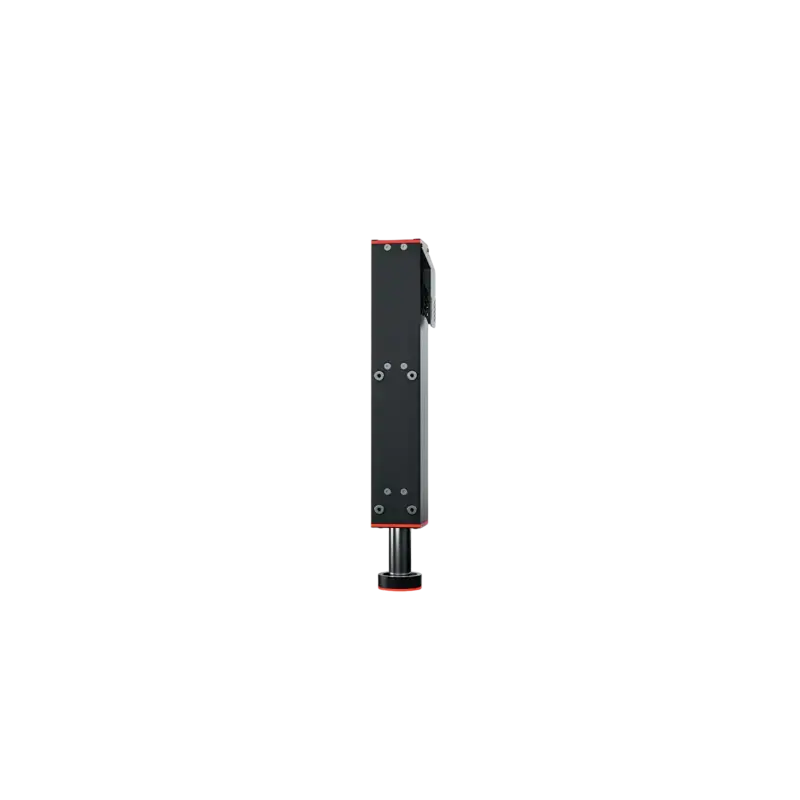

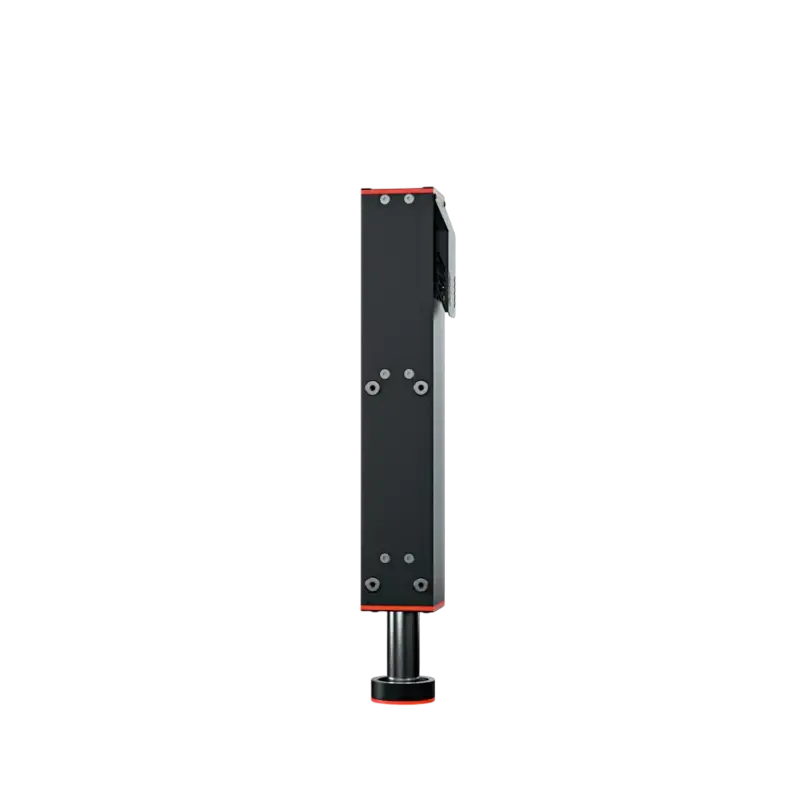

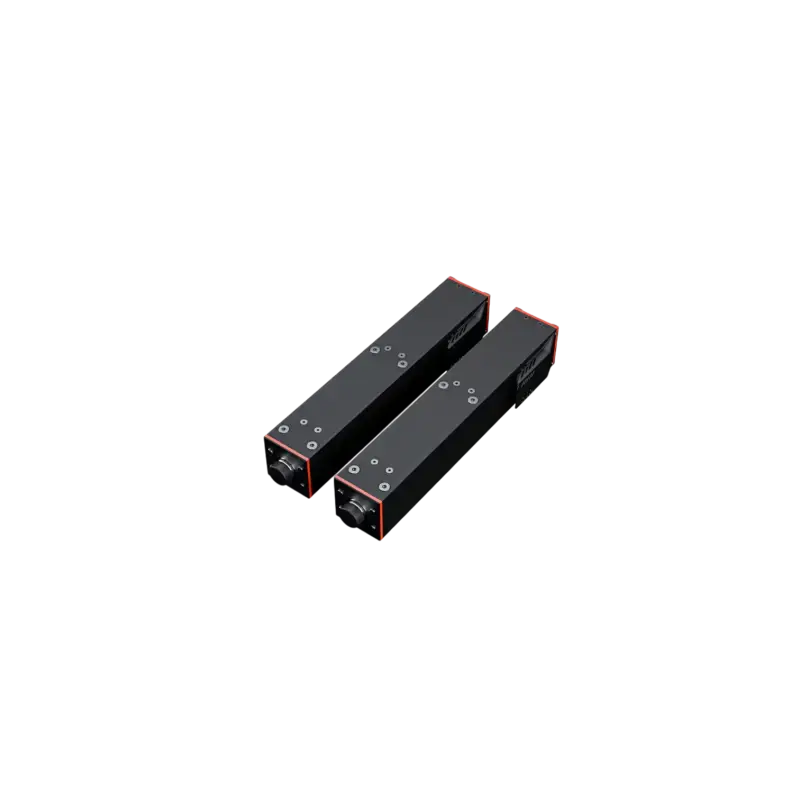

The QS-210 is the compact alternative within Qubic System's linear-actuator range. Each actuator provides 60 mm of stroke, while the system translates simulator telemetry into controlled chassis movement and high-frequency haptic detail.

• 60 mm actuator stroke
• Maximum speed up to 400 mm/s in Performance mode
• Maximum acceleration up to 0.6G in Performance mode
• Maximum payload up to 200 kg in Performance mode or 250 kg in Heavy-Duty mode
• System latency below 8 ms
• Real-time vibration feedback up to 100 Hz
• 120/230 VAC, 50–60 Hz, single-phase power supply

Actual performance depends on the selected configuration, payload, operating mode and software settings.

Control through QubicManager

The included QS-MC6 controller connects the motion system to your PC by USB. QubicManager is available free of charge for motion-profile selection, tuning, diagnostics and system updates, with support for a wide range of racing and flight simulation titles.

Mounting on a SIMGASM cockpit

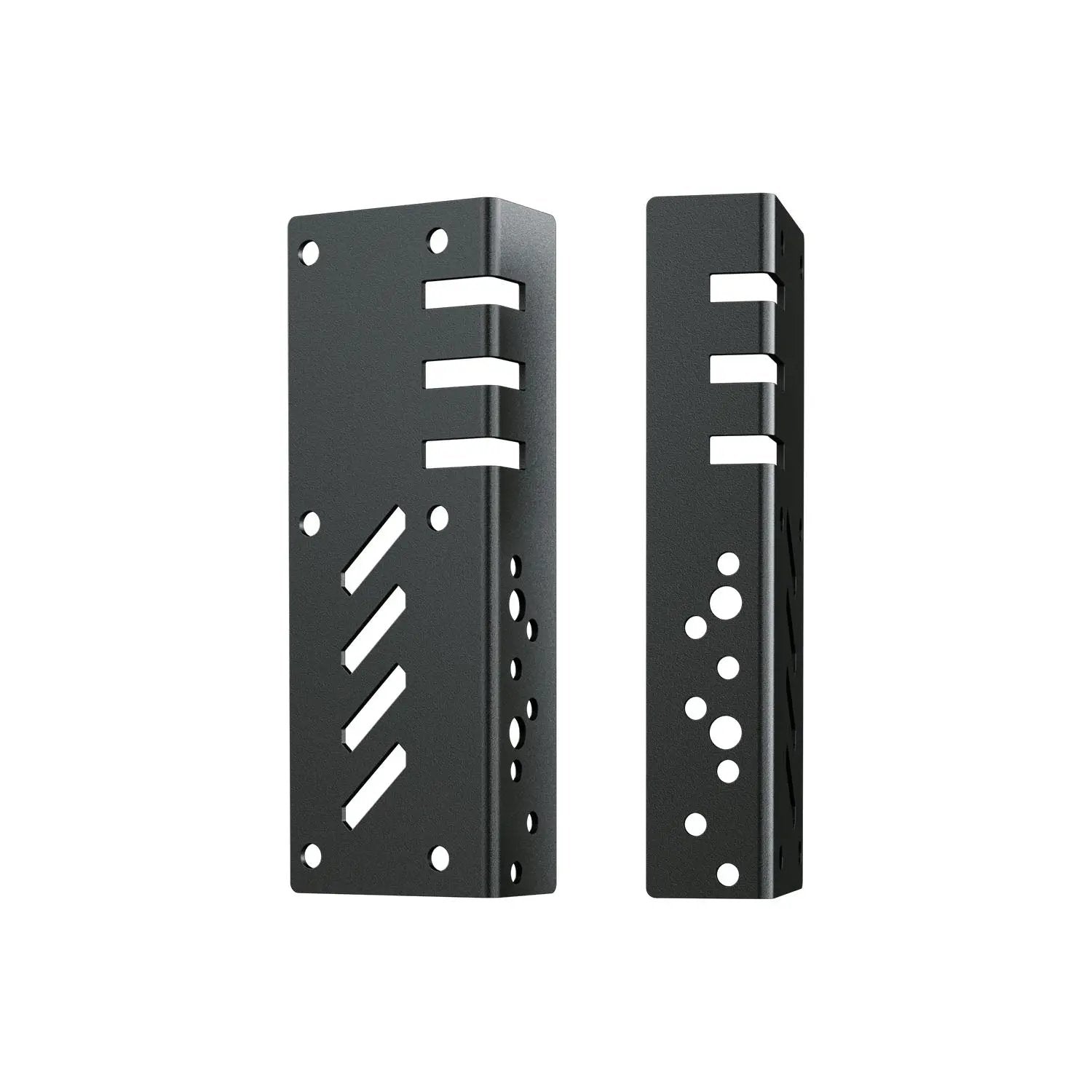

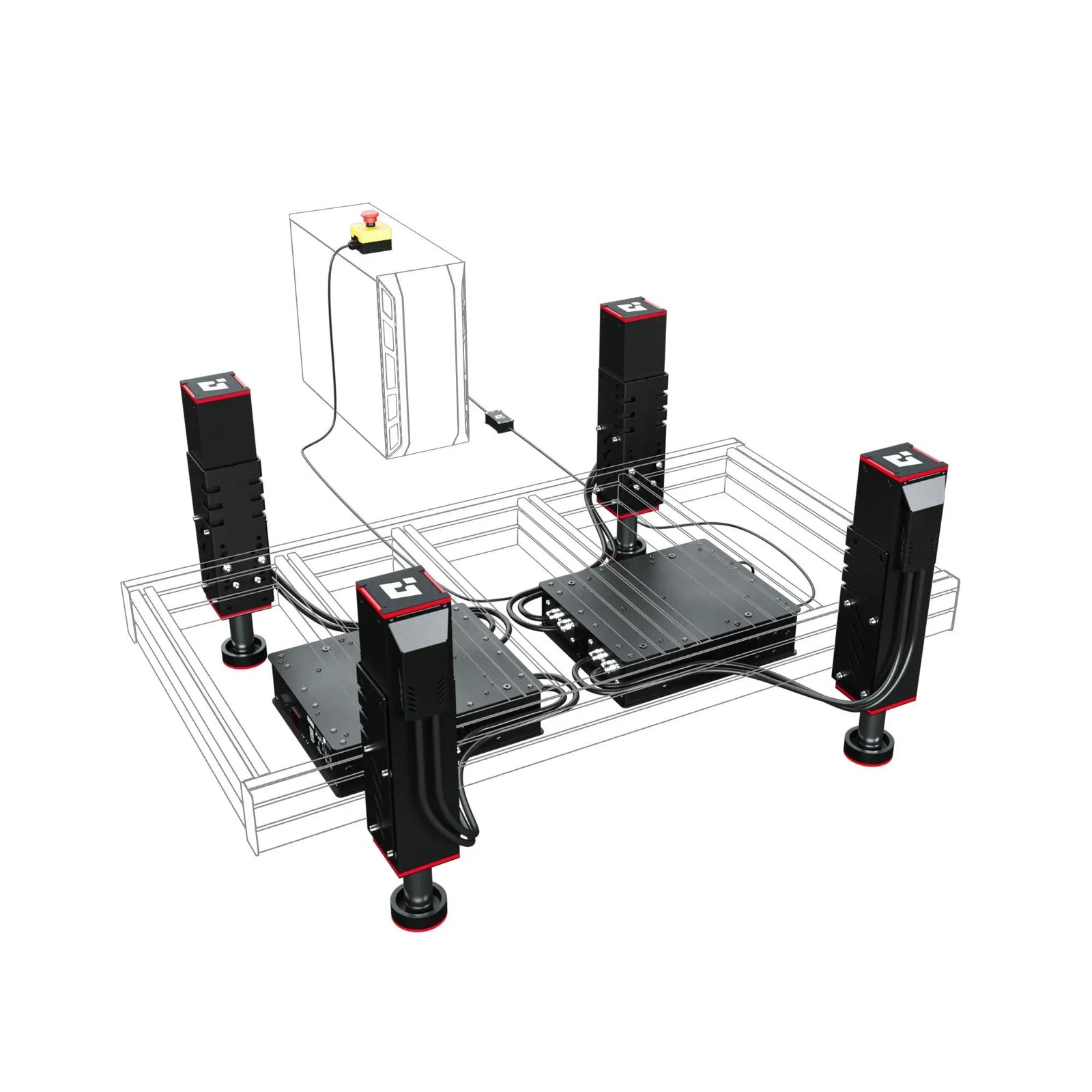

For installation on a SIMGASM Hobby, Club, Sport or Pro aluminium-profile cockpit, combine the applicable Qubic mounting hardware with the SIMGASM BS-MA Universal Motion Actuator Bracket Set, sold separately. This creates a secure four-corner connection between the motion hardware and the chassis.

The cockpit, seat, steering controls, pedals, BS-MA bracket set and other simulator hardware are not included unless explicitly stated in the selected configuration.

Important ordering information

Select the required configuration carefully, especially when choosing the Upgrade Set. Check cockpit rigidity, electrical requirements and clearance around every moving component before installation, and always follow the current Qubic System installation and safety instructions.

Supplied to order: Contact us to confirm availability and lead time. Once the order has been confirmed, it cannot be cancelled.
