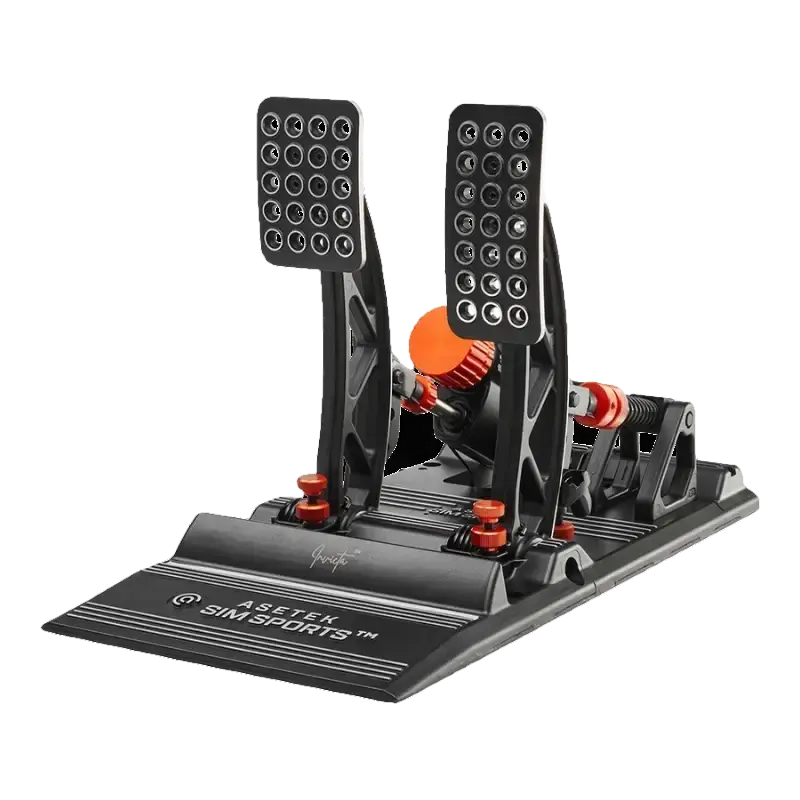

Asetek SimSports Invicta™ Pedals T.H.O.R.P.™ II Throttle and Brake Pedals

Asetek SimSports Invicta™ Pedals T.H.O.R.P.™ II Throttle and Brake Pedals

Invicta™ Pedals T.H.O.R.P. II - Precision Redefined

Experience More Than a Simulation

Unleash the true essence of racing with the Invicta™ Pedals T.H.O.R.P. II. Designed for ultimate performance, these pedals feature the groundbreaking T.H.O.R.P. II hydraulic brake system, delivering an authentic race car braking feel with unmatched precision and adjustability. With up to 40% longer travel and a lower force requirement for reaching the second stage, these pedals give you the power to fine-tune your braking experience like never before.

The hydraulic brake system enables immersive trail braking, providing precise control and seamless modulation. By accurately simulating real brake pressure and fluid dynamics, it delivers a consistent braking feel that helps you build and refine muscle memory for peak performance. Plus, all adjustable components are highlighted in orange, allowing for quick, tool-free customization.

Brake Like a Pro

The T.H.O.R.P. II system builds upon its predecessor’s legacy, enhancing flexibility and adjustability. Now, you can fine-tune both brake pressure and travel distance with even greater accuracy, ensuring a truly personalized braking experience. The improved design also allows for front-facing adjustments, making it easier to modify settings on the fly.

The T.H.O.R.P.™ System - Race-Grade Engineering

The Twin Hydraulic Opposing Rapid Pistons (T.H.O.R.P.) System by Asetek SimSports offers the ultimate braking experience, replicating the pressure-based feedback of a real race car. Featuring an automotive-grade pressure sensor, this system delivers the most authentic brake feel in sim racing.

The Two-Stage Braking System

Soft Stage:

• Simulates real-world brake caliper pistons moving into position and compensates for minor mechanical play.

• Uses an elastomer-based slave cylinder to replicate this effect, allowing 20-25mm of pedal travel.

• Different elastomers provide varying levels of resistance without altering pedal travel.

Hard Stage:

• Once the soft stage is complete, the pedal enters the hard stage, simulating a real race car’s hydraulic pressure build-up.

• Feels identical to pressing against hydraulic forces in a race car, with a pressure range of up to 100 bar (equivalent to 185 kg of force on the pedal plate).

• Provides a precise, realistic brake feel that mirrors the physics of an actual racing vehicle.

Expand Your Racing Possibilities

Invicta Clutch System - Race in Every Category

Unlock a new dimension of racing with the Invicta Clutch System. Designed to deliver a realistic engagement feel, this system provides the same slamming rebound and responsiveness found in real race cars.

Note: The clutch system is only compatible with Asetek SimSports pedals and is not a standalone product.

Hydraulic Precision. Fully Customizable.

A hard, pressure-based brake pedal is essential for training muscle memory, allowing your subconscious to instinctively apply the right braking force every lap. Unlike position-based braking, which is harder to master, pressure-based braking ensures consistent, repeatable performance—critical for precision trail braking and high-level competition.

Engineered to Exceed Limits

Built for endurance, these pedals withstand immense forces. The brake pedal arm is designed for 200 kg of force, with a burst pressure capacity of up to 700 kg. Rigorously tested with over 1,000,000 activations, the Invicta Pedals surpass real-world race car durability standards, ensuring peak reliability in every session.

RaceHub - The Software Behind Your Success

Fine-tune your Asetek SimSports setup effortlessly with RaceHub. This intuitive software allows you to:

• Calibrate and adjust throttle, brake, and clutch within seconds.

• Save all settings in the EPROM memory, ensuring automatic retention across races.

• Customize pedal curves, dead zones, and force levels for a fully personalized driving experience.

Not Ready for Invicta?

If you're new to sim racing, consider starting with the La Prima or Forte Pedals. When you're ready to upgrade, our easy-to-install upgrade kits allow you to enhance your setup without starting from scratch.

Key Specifications

Build & Design:

• Danish industrial design - radical, minimalistic, and exquisite.

• Fully adjustable travel settings and pedal stops.

• CNC-machined, black anodized aluminum components with contrast-cut surfaces.

• Integrated heel rest and customizable RGB LED lighting.

• Adjustable pedal plates for optimal ergonomics.

• In-house developed 16-bit electronics with automotive-grade sensors.

• Tested to over 1,000,000 activations, exceeding race car standards.

Brake System:

• T.H.O.R.P. II hydraulic brake cylinder for real-racecar experience.

• Zero-play die-cast aluminum pedal arm with long-life ball bearings.

• Automotive-grade 100-bar pressure sensor.

• Five interchangeable elastomers for hardness adjustment.

• Forged aluminum hydraulic brake cylinder with integrated expansion chamber.

Throttle System:

• 16-bit magnetic hall sensor - wear-free, maintenance-free.

• Customizable throttle curves in RaceHub software.

• Adjustable pedal hardness, travel, and stop.

• Pedal arm rated for 200 kg of force, burst pressure up to 700 kg.

Compatibility:

• Supported Games: Assetto Corsa, iRacing, F1 Series, rFactor 2, and more.

• PC Platforms: Windows 10/11.

Box Contents:

• Pedal set and mounting accessories.

• Interchangeable elastomers and springs.

• Performance grease, cable ties, and tools.

• RaceHub software guide, warranty, and safety information.

• Invicta Sticker Sheet.

Push Your Limits with the Invicta™ Pedals T.H.O.R.P. II

Engineered for unparalleled realism and durability, these pedals let you brake with precision, race with confidence, and feel every moment on the track. Whether you're chasing lap records or refining your technique, the Invicta Pedals deliver the ultimate competitive edge.

Get ready to redefine your racing experience.
